DTS Spindle Specs

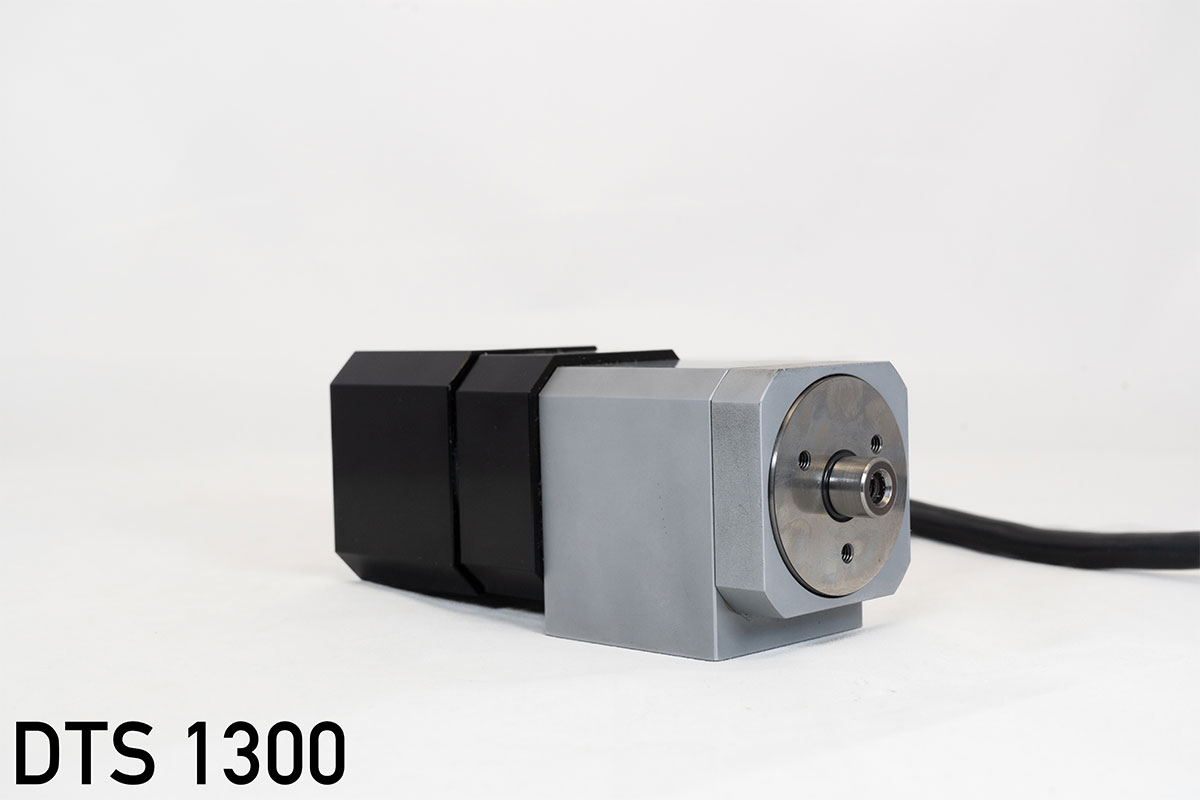

DTS 1300: 5 lbs
Spindle Nose Diameter: .4998” – .4999”
Bolt Circle: 3 x #8 -32 UNC Equally Spaced on 1.125”
Maximum Recommended Diamond Roll Width: .500”
Maximum Recommended Diamond Roll Diameter: 4.500”

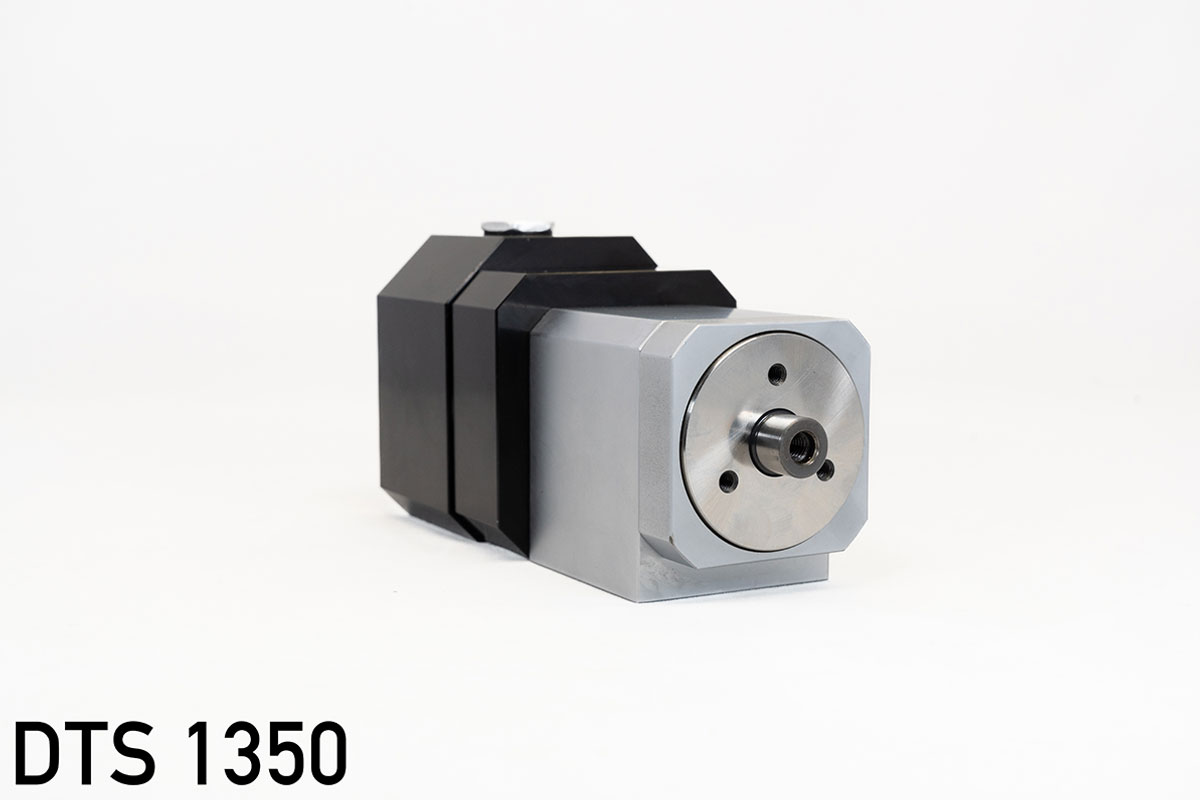

DTS 1350: 5 lbs
Spindle Nose Diameter .4998” – .4999”
Bolt Circle: 3 x #8 -32 UNC Equally Spaced on 1.125”
Maximum Recommended Diamond Roll Width: .500”
Maximum Recommended Diamond Roll Diameter: 4.500”

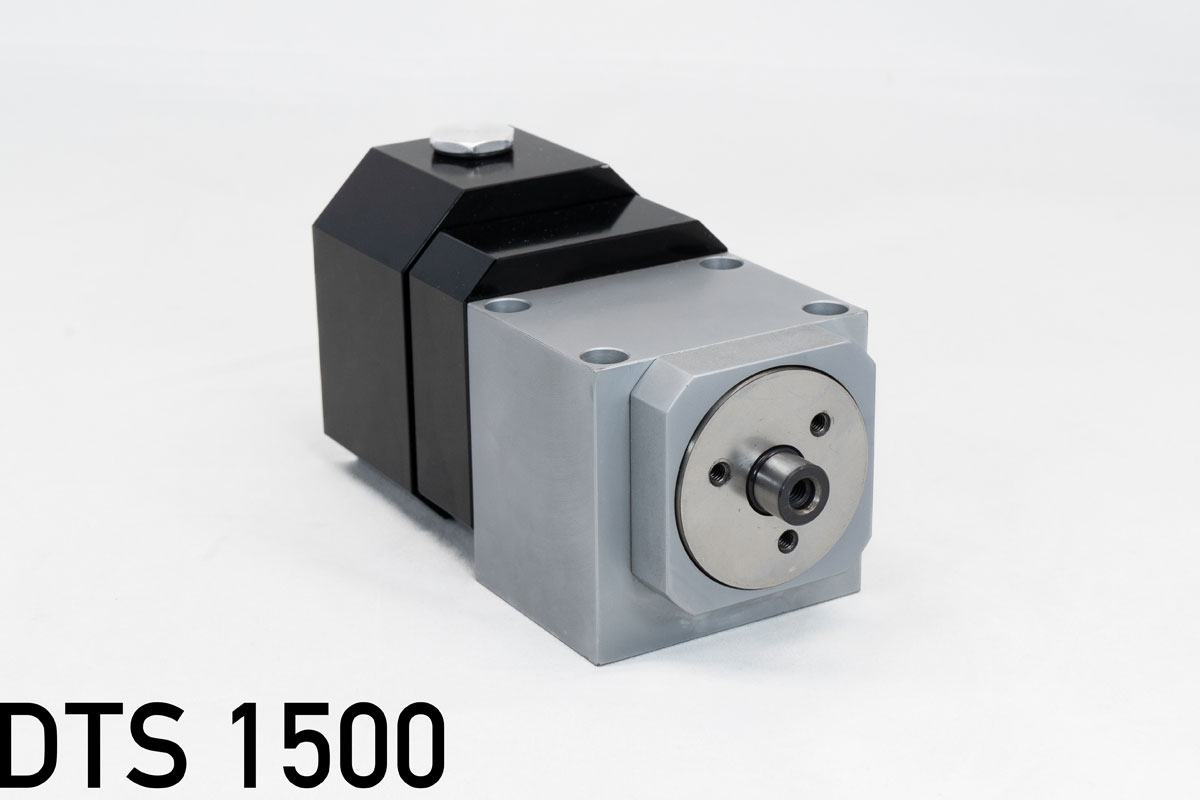

DTS 1500: 5 lbs
Spindle Nose Diameter .4998” – .4999”
Bolt Circle: 3 x #8 -32 UNC Equally Spaced on 1.125”
Maximum Recommended Diamond Roll Width: .500”
Maximum Recommended Diamond Roll Diameter: 4.500”

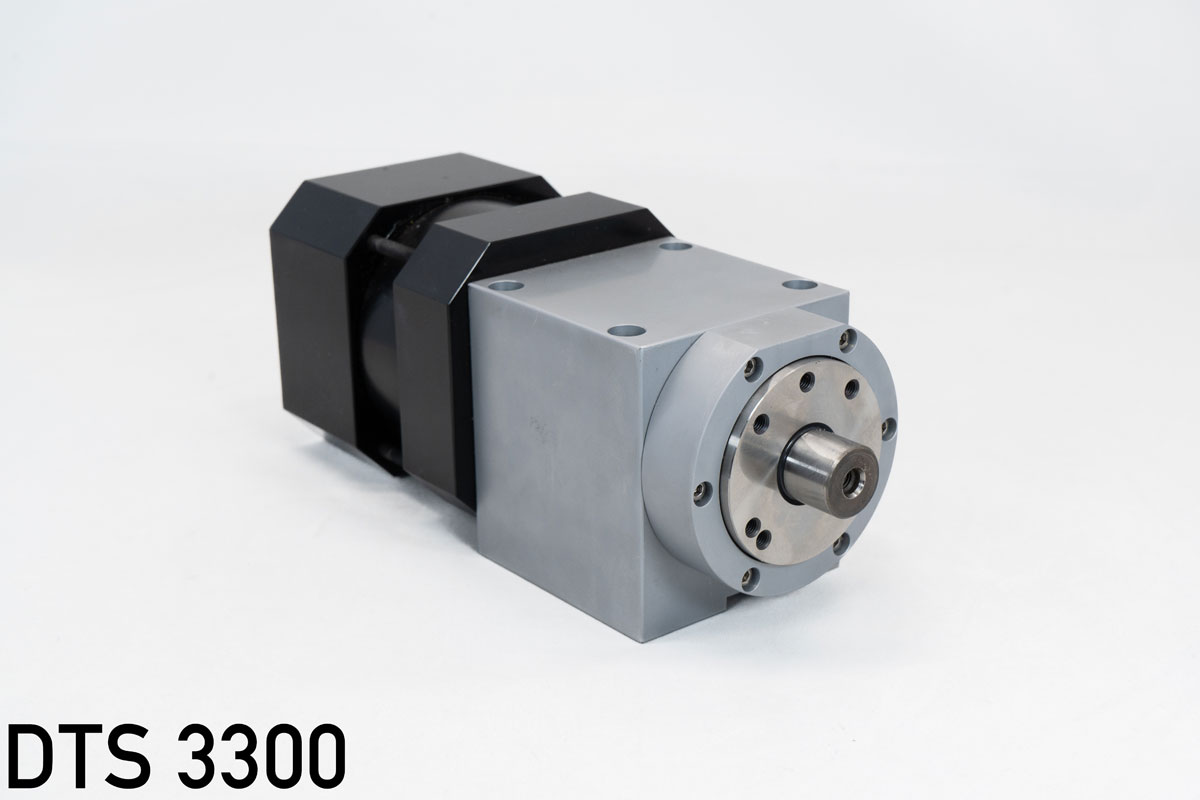

DTS 3300: 10 lbs
Spindle Nose Diameter .7498” – .7499”
Bolt Circle: 3 x #10 -32 UNF equally spaced on 1.750”
or 4 x #10 -32 UNF on the bolt holes equally spaced on 1.750”
Maximum Recommended Diamond Roll Width: 1.000”
Maximum Recommended Diamond Roll Diameter: 5.000”

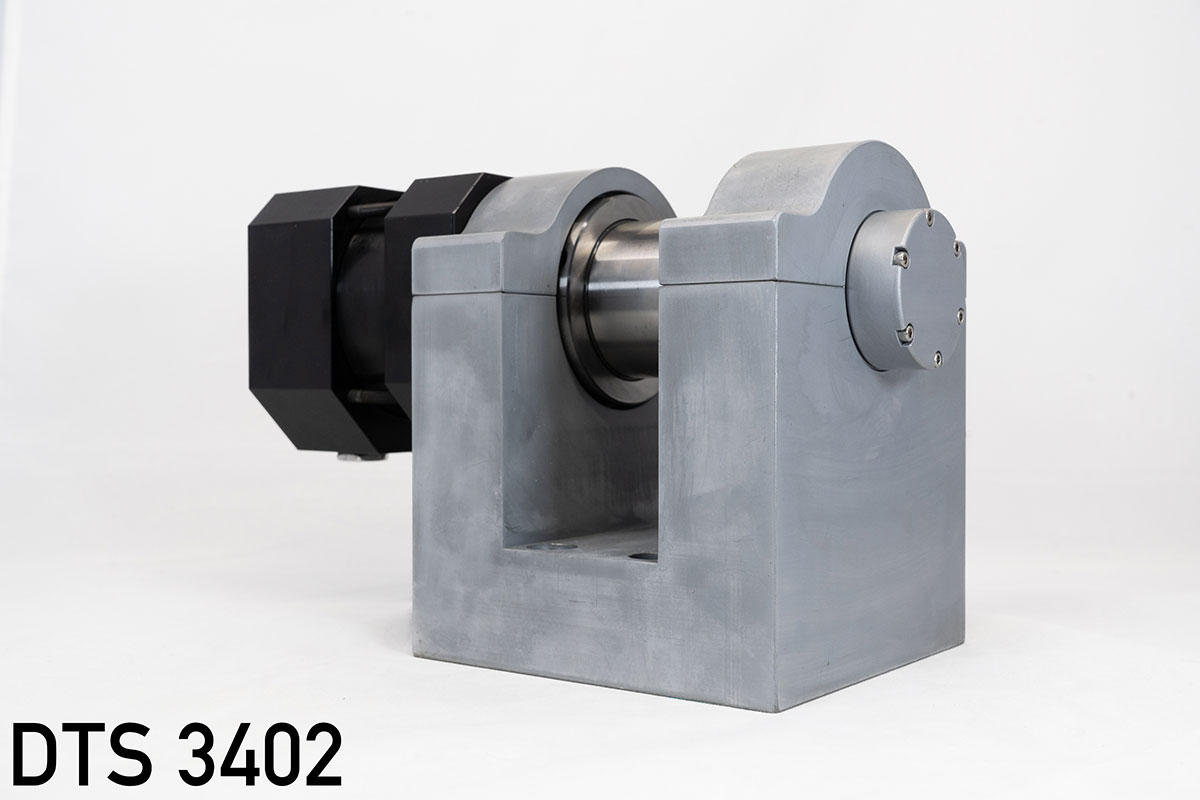

DTS 3402: 33 lbs
Spindle Shaft Diameter: 52mm (2.0471” – 2.0472”)
Diamond Roll Width Capacity: 2.000” or 50mm
Maximum Recommended Diamond Roll Diameter: consult factory

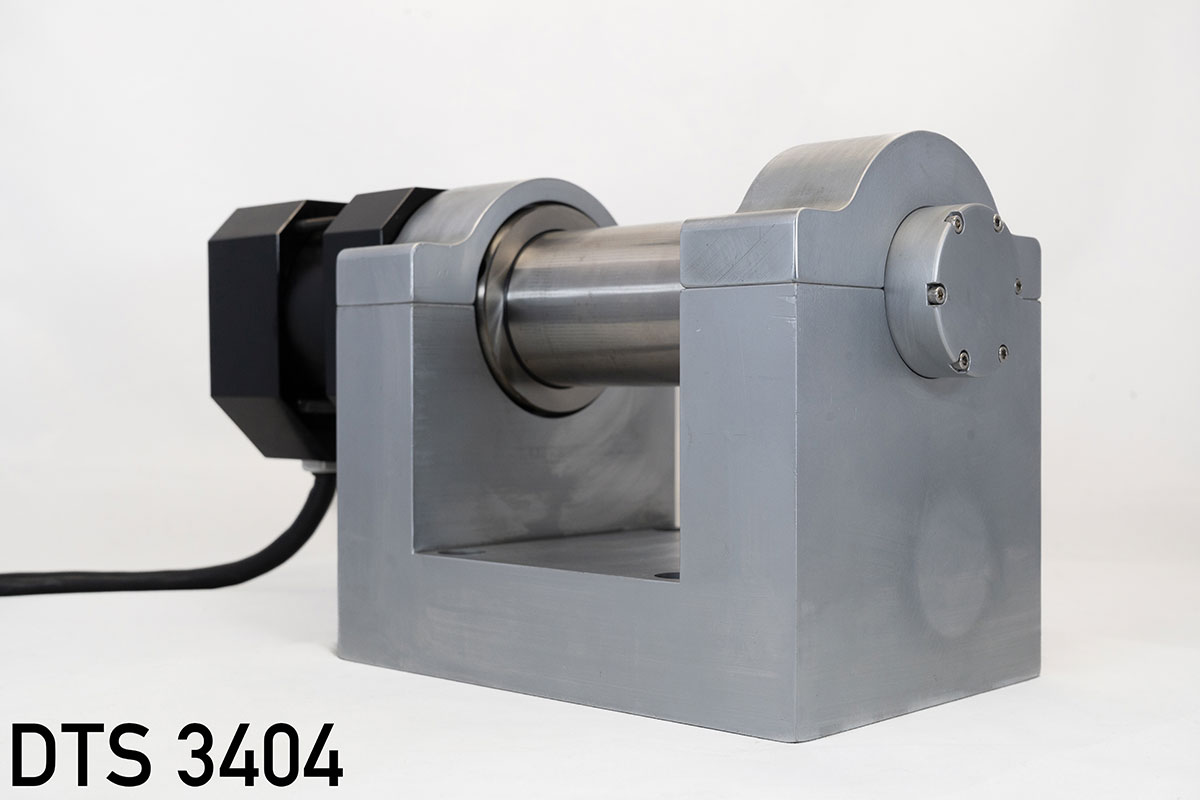

DTS 3404: 42 lbs
Spindle Shaft Diameter: 52mm (2.0471” – 2.0472”)
Diamond Roll Width Capacity: 4.000” or 100mm
Maximum Recommended Diamond Roll Diameter: consult factory
Legacy Spindles
We provide support for these truing spindles

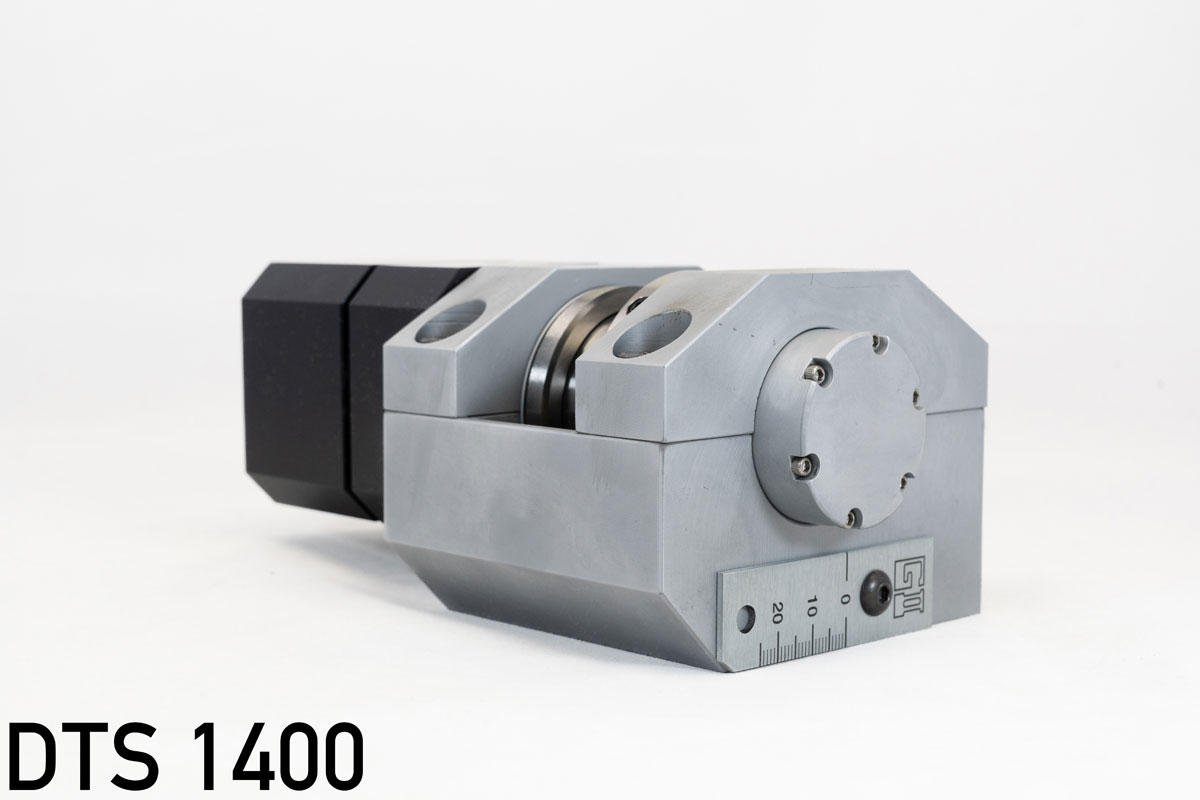

DTS 1400: 8 lbs
Spindle Shaft Diameter – 40mm
Dressing Roll Width – 13-16mm
Dressing Roll Diameter – 70-80mm

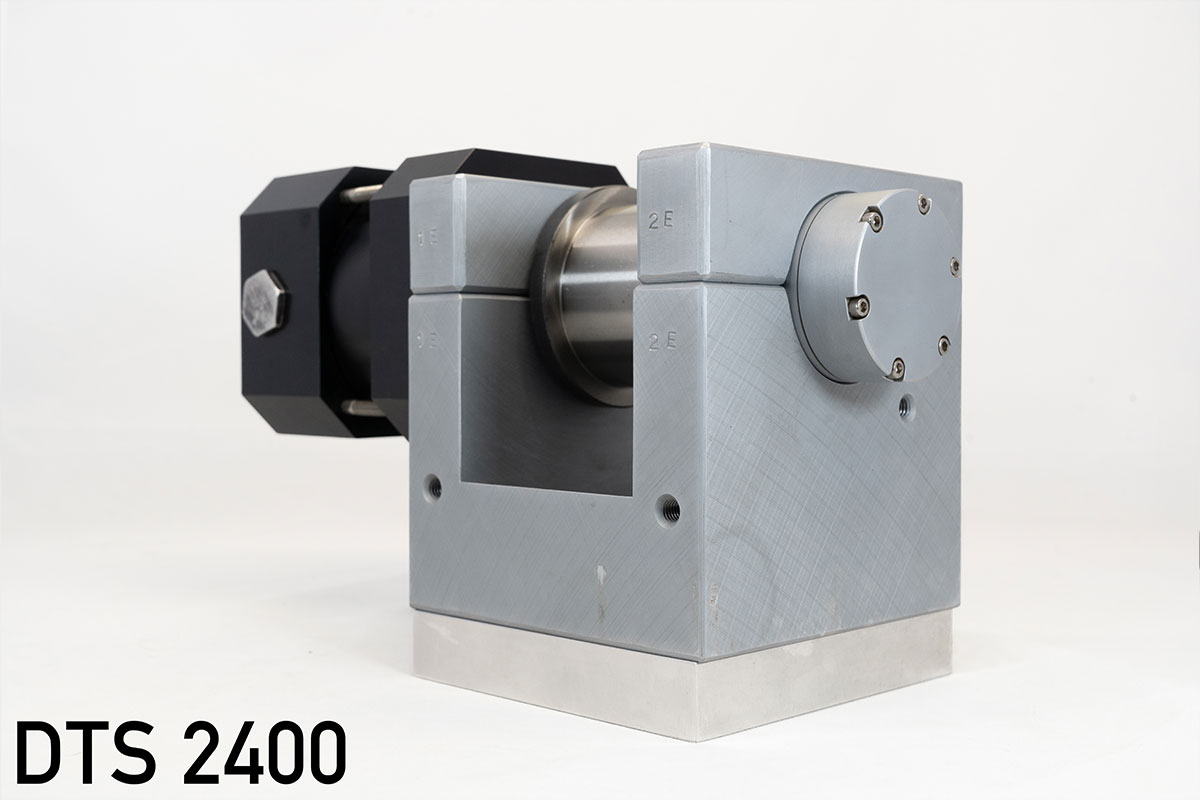

DTS 2400: 19 lbs
Spindle Shaft Diameter – 50mm
Dressing Roll Width – 40-43mm
Dressing Roll Diameter – 80-130mm
