The DTS Spindle Line

The DTS line features three different types of spindles: cantilever mount style, outboard bearing support style, and removable arbor models.

Cantilever mount style models are intended for applications where the truing roll traces across the grinding wheel.  These spindles can also be used for plunging applications where the grinding wheel is relatively thin.

Outboard bearing support models are required for plunge dressing and truing applications where the grinding wheel is relatively wide or for when multiple wheels are to be mounted to the spindle during a single operation.

Removable arbor type spindles are used for the same reasons as outboard support units, but offer quick change among different roll types and provide the capability for wider diamond roll widths.  For each style, a variety of models are offered to accommodate a wide range of diamond roll widths and diameters and power requirements.



Approximate Weights & Diamond Roll Nominal Sizes:


DTS 1300: 5 lbs

  • Spindle Nose Diameter .4998” - .4999”

  • Bolt Circle: 3 x #8 -32 UNC Equally Spaced on 1.125”

  • Maximum Recommended Diamond Roll Width: .500”
  • Maximum Recommended Diamond Roll Diameter: 4.500”


DTS 3300: 13 lbs

  • Spindle Nose Diameter .7498” - .7499”
  • Bolt Circle: 3 x #10 -32 UNF Equally Spaced on 1.750”
    and 4 x #10 -32 UNF Equally Spaced on 1.750”
  • Maximum Recommended Diamond Roll Width: 1.000”
  • Maximum Recommended Diamond Roll Diameter: 5.000”

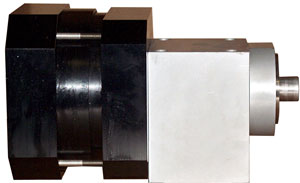

D
TS 4300: 18 lbs

  • Spindle Nose Diameter .7498” - .7499”
  • Bolt Circle: 3 x #10 -32 UNF Equally Spaced on 1.750”
    and 4 x #10 -32 UNF Equally Spaced on 1.750”
  • Maximum Recommended Diamond Roll Width: 1.000”
  • Maximum Recommended Diamond Roll Diameter: 6.000”


DTS 3402: 11 lbs

  • Spindle Shaft Diameter: 52mm (2.0471” – 2.0472”)
  • Diamond Roll Width Capacity: 2.000” or 50mm
  • Maximum Recommended Diamond Roll Diameter: consult factory


DTS 3404: 12 lbs

  • Spindle Shaft Diameter: 52mm (2.0471” – 2.0472”)
  • Diamond Roll Width Capacity: 4.000” or 100mm
  • Maximum Recommended Diamond Roll Diameter: consult factory

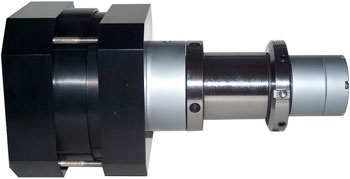

DTS 4402: 16 lbs

  • Spindle Shaft Diameter: 52mm (2.0471” – 2.0472”)
  • Diamond Roll Width Capacity: 2.000” or 50mm
  • Maximum Recommended Diamond Roll Diameter: consult factory

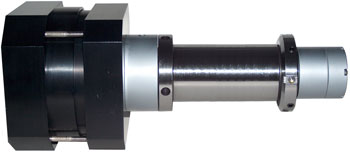

DTS 4404: 17 lbs

  • Spindle Shaft Diameter: 52mm (2.0471” – 2.0472”)
  • Diamond Roll Width Capacity: 4.000” or 100mm
  • Maximum Recommended Diamond Roll Diameter: consult factory
